Certified Pre-owned Autel Diagnostic Device

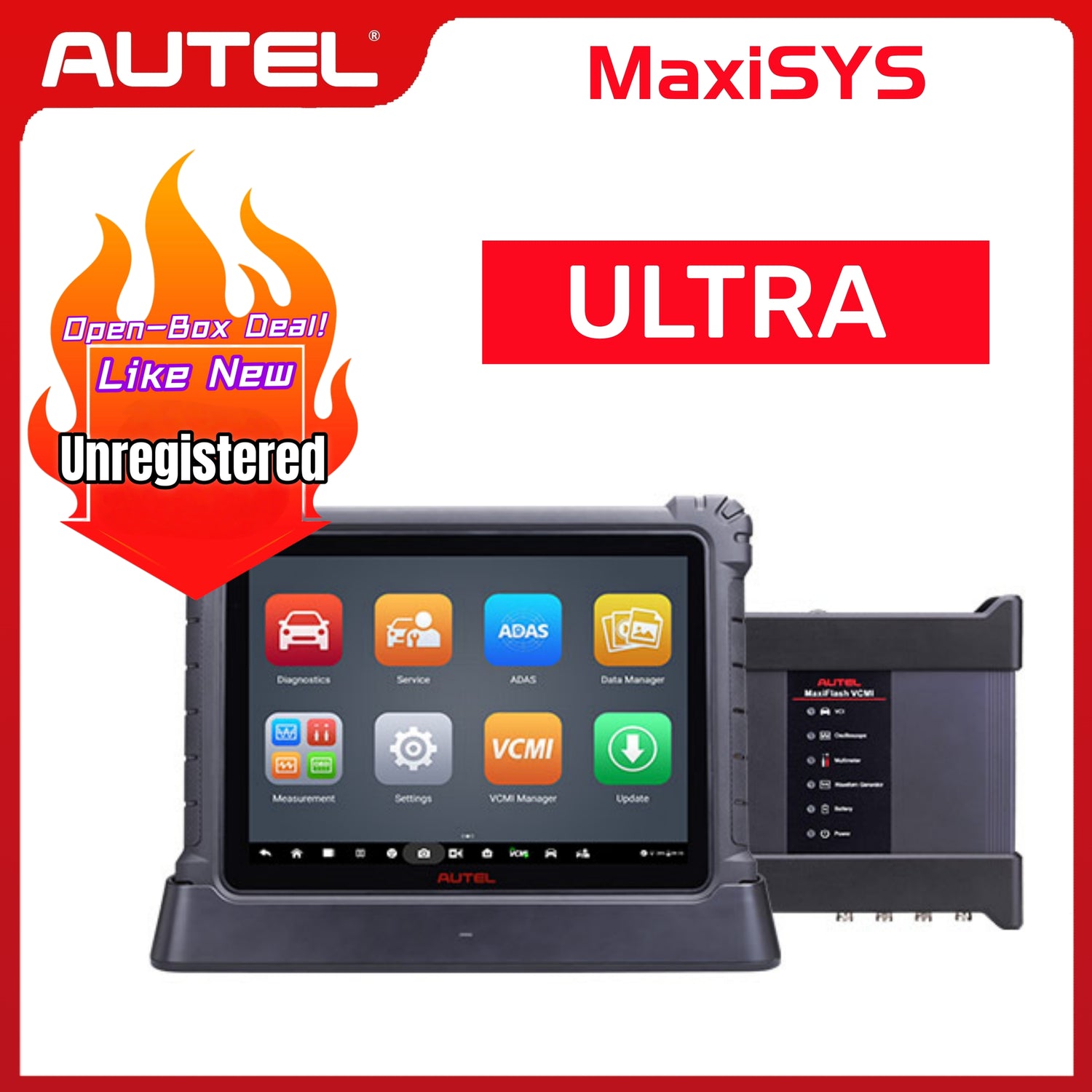

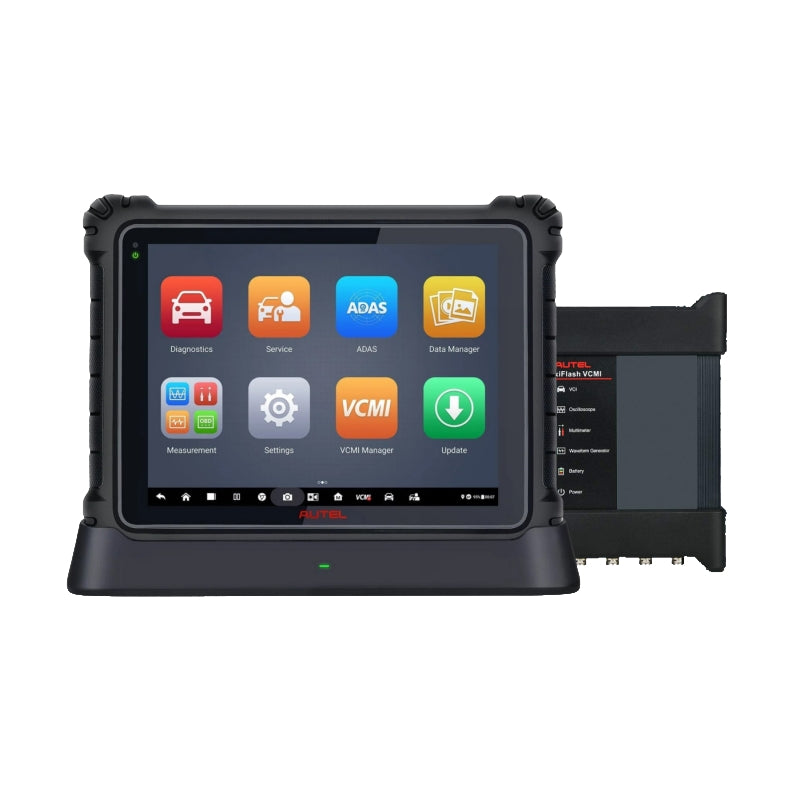

AUTEL MaxiSYS Ultra(US Ver)

Advanced Diagnostic Tablet

The MaxiSYS MSUltra is Autel’s most ambitious diagnostics tablet to date, featuring a 12.7-inch touchscreen Android-based tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and CanBUS tester. The Ultra offers the most advanced approach to vehicle diagnostics with its dynamic topology module mapping for supported vehicles and Oscilloscope preset guides, tests and waveform library. The Ultra features a rechargeable Lithium battery providing 8 hours of continues use, a convenient docking station and front and rear cameras.

 ✅  Large 12.7-inch (2732 x 2048) touchscreen / Android 7.0
 ✅  2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
 ✅  Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
 ✅  Oscilloscope Preset Guided & Component Tests / Waveform Library
 ✅  New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
 ✅  Split Screen Multi-Application Function / Dual Wi-Fi Connection
 ✅  Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
 ✅  License Plate Reader
 ✅  ScanVIN: Barcode or Text Recognition with Camera
 ✅  Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
 ✅  Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
 ✅  Enhanced Diagnostic Reports: PreSCAN & PostSCAN
 ✅  18000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

AUTEL MaxiSYS Ultra EV(US Ver)

Advanced EV Diagnostics with MaxiFlash VCMI

The MaxiSys Ultra EV is a new generation of advanced diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.7-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box.

 ✅  Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
 ✅  Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
 ✅  Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
 ✅  State of Charge and State of Health analysis for true battery condition
 ✅  Battery pack analysis can be performed via OBD or analyze the pack directly with included specialty cables and jumpers; the Ultra EV screen displays detailed graphics and in-depth  connection guidance to provide safe and secure testing.
 ✅  Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
 ✅  One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
 ✅  Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

AUTEL MaxiSYS MS919(US Ver)

Advanced Diagnostic Tablet

The MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and CanBUS tester. The MS919 features dynamic topology module mapping for supported vehicles and Oscilloscope preset guides and tests and waveform library. The MS919 features a rechargeable Lithium battery proving 8 hours of continues use.

 ✅  9.7’’ Touchscreen (1536 x 2048) / Android 7.0
 ✅  2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
 ✅  Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
 ✅  Oscilloscope Preset Guided & Component Tests / Waveform Library
 ✅  New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
 ✅  Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
 ✅  License Plate Reader
 ✅  ScanVIN: Barcode or Text Recognition with Camera
 ✅  Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
 ✅  Includes Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
 ✅  Enhanced Diagnostic Reports: PreSCAN & PostSCAN
 ✅  Dual Wi-Fi Connection
 ✅  15000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

AUTEL MaxiSYS MS909(US Ver)

Advanced Diagnostic Tablet

The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles. The MS909 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.

 ✅  9.7’’ Touchscreen (1536 x 2048) / Android 7.0
 ✅  2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
 ✅  New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
 ✅  Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
 ✅  License Plate Reader
 ✅  ScanVIN: Barcode or Text Recognition with Camera
 ✅  Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
 ✅  Includes Cables, MaxiFlash VCI, Carrying Case, 1YR Warranty & Software Subscription
 ✅  Enhanced Diagnostic Reports: PreSCAN & PostSCAN
 ✅  15000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

Autel MaxiSYS MS909CV(US Ver)

Commercial Vehicle Diagnostic Tablet

The Autel MaxiSYS MS909CV is a 9.7-inch wireless Android diagnostic tablet for light, medium, and heavy-duty vehicles, including off-road construction vehicles. The MS909CV offers Autel’s most comprehensive commercial vehicle diagnostic tablet and service capabilities with all-systems auto scan, network topology, viewing and graphing live data, performing bi-directional controls and tests for Class 1-Class 9 heavy-duty vehicles and off-road construction equipment.

The unit also features Expert Mode for direct access to OE-specific systems, including engine, transmission, and braking systems. The MS909CV can perform dynamic and static ADAS calibrations (static calibrations require the purchase of an Autel Commercial Vehicle ADAS calibration package). The tablet ships with the MaxiBAS B200 battery/starting/charging system test device, Deutsch 6 Pin & 9 Pin and Full Probe set, and the MaxiFlash VCI/J2534 pass-thru programmer.

 ✅  MaxiSYS MS909CV performs enhanced system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles
 ✅  9.7-inch Wireless Android-Based Touchscreen Diagnostics Tablet
 ✅  Octa-core Processor / 128 GB Storage Memory
 ✅  Engine diagnostic coverage for construction & agricultural machinery
 ✅  Wireless Vehicle Communication Interface (VCI)/J2534 Pass-Thru Programming Device
 ✅  Topology Module Mapping
 ✅  Performs Starting and Charging Systems Analysis with included MaxiBAS B200 tester with alligator clamps
 ✅  Includes Multimeter & Amp Clamp
 ✅  ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems
 ✅  Rapid Vehicle Identification via VINscan and AutoVin
 ✅  Includes One Year Limited Warranty and Free Software Updates

The MS909CV is equipped to handle numerous HD protocols, including:

- SAE J1939: Commonly used in heavy-duty vehicles for CAN communication
- SAE J1708: A legacy protocol for older heavy-duty applications
- ISO 15765: CAN protocol for OBD-II diagnostics
- ISO 14229 (UDS): Unified Diagnostic Services for advanced vehicle diagnostics
- PLC J2497: Power Line Carrier communication for trailer ABS systems
- ISO 11898-2/3: High-speed and low-speed CAN protocols
- SAE J1850 PWM/VPW: Used in Ford SCP and GM Class 2 systems
- DoIP (ISO 13400): Diagnostics over IP for modern vehicles
- CAN FD: Enhanced CAN protocol for faster data transmission

Additionally, the MS909CV supports Caterpillar’s proprietary CDL protocol, enabling diagnostics on Caterpillar equipment, such as wheel loaders and excavators. This includes bi-directional controls and active tests for hydraulic systems.

AUTEL MaxiIM IM608PRO II IMMO(US Ver)

ADVANCED IMMO AND KEY PROGRAMMING BUNDLE

Autel key programming and IMMO products are designed for professional locksmiths and NASTF-registered Vehicle Security Professionals. Please ensure you meet local licensing requirements before purchasing.

The IM608PROIIKPA is a comprehensive key and immobilizer programming package of the MaxiIM IM608PROII 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass thru programming device and the Key Programming Adapter kit. The IM608PROII enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to vehicle. The IM608PROII is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 include the ability to perform active test, coding and adaptations. Use to program Autel’s line of IKeys.

 ✅  MaxiIM IM608PROII 10.1-inch Android Touchscreen Tablet
 ✅  Program IMMO & Keys for U.S., Asian and European Vehicles
 ✅  XP400Pro Key and Chip Programmer
 ✅  JVCI Wireless J2534 Pass Thru Programming Device
 ✅  Includes IMKPA Key Programming Adapter Kit

AUTEL MaxiIM IM508S(US Ver)

KEY FOB PROGRAMMER AND IMMO TOOL

Autel key programming and IMMO products are designed for professional locksmiths and NASTF-registered Vehicle Security Professionals. Please ensure you meet local licensing requirements before purchasing.

The IM508S is an Android-based touchscreen diagnostic, service and key programming tablet. This 7-inch Wi-Fi tablet includes the XP200 key programmer, offers immobilizer and key programming capability for most U.S., and Asian vehicles. Use to program Autel’s line of IKeys. The IM508S, an all-systems code reader and service tool, offers powerful IMMO functionality including backup, restore, adaptations and coding, key generation and key learning & remote learning.

✅  MaxiIM IM508S is an ultra fast portable immobilizer and key programming device
✅  Powerful combination of key programming/all system diagnostics/maintenance services
✅  Smart Mode for guided and automated key learning
✅  Expert Mode for advanced key learning
✅  Read PIN/CS (all key lost), key generation, key learning, remote learning
✅  IMMO ECU reset/adaptation, refresh/coding
✅  All systems diagnostics for US, Asian and European vehicles, 1996 and newer
✅  Maintenance services including EPB, DPF, SAS, Oil reset, and BMS

AUTEL MaxiIM KM100 -US Ver

Key Programming Tablet + 2 Programmable IKEYS

Autel key programming and IMMO products are designed for professional locksmiths and NASTF-registered Vehicle Security Professionals. Please ensure you meet local licensing requirements before purchasing.

MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 3000 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.

✅ Advanced key and immobilizer 5.5-inch touchscreen tablet with 2 IKEYS
✅ Program Autel’s IKEY universal keys as smart key replacement for more than 3000 vehicles
✅ One-minute Key generation, Easy key button customization
✅ Chip Read and Write, Cloning and Frequency Detection
✅ Extensive IMMO Key programming coverage including BMW, VW, Honda and GM
✅ Reads/displays IMMO info including IMMO ECU, VIN and Pin code
✅ IMMO functions: key learning, remote control learning, remote control add
✅ Key Unlocking and Key Renewal
✅ Includes Bluetooth-enabled VCI
✅ Includes one year of free software updates and one-year limited warranty
